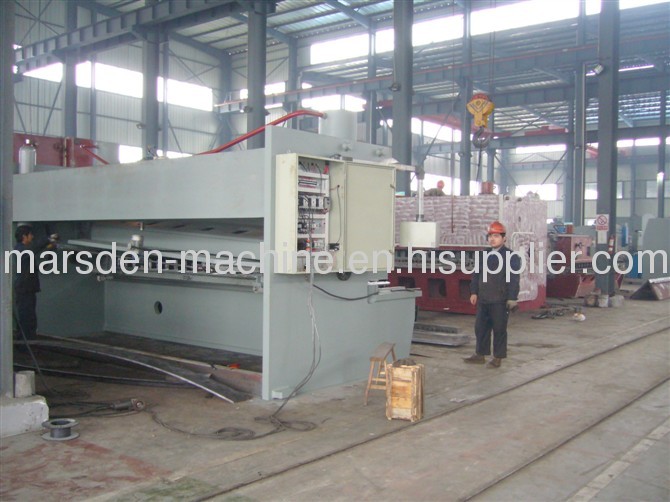

Enlarge cnc guillotiines shears machine

cnc guillotiines shears machine

Price: 15000.0~22000.0 USD
Payment Terms: T/T,
Place of Origin: Jiangsu, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: QC11Y-12X2500
Production Capacity: 30 Set/Sets per Month
Delivery Date: Within 20-35 days...
Max cutting thickness:: 12mm
Electrical parts:: SIEMENS
Certification:: CE
Means of Transport: Ocean,
Packing: exporting demanding
Control:: CNC
Max cutting width:: 2500mm
Blade material:: 9Crsi
WARRANTY:: 100% one year

Accessory
--Front extensive arm, 3 pieces
--Anchor bolt, 4 pieces
--Nut, some pieces
--Washer, some pieces
--Oil gun, 1 piece
--Foot peda

cnc guillotiines shears machine
cnc guillotiines shears machine QC11Y-12X2500

cnc guillotiines shears machine

cnc guillotiines shears machine
  • Holistic welding structure treated by annealing.
  • The top rest does the linear motion under the hydraulic cylinder′s drive.
  • Both the upper and lower blades are rectangular,and the blade clearance can be rapidly adjusted manually or electrically.
  • Time relay controls shearing stroke and shearing angles are adjusted electrically.
  • The forward and backward movement of the back gauge is motorized and indicated by a digital display,while fine adjustments are also available.
  • All major electrical and hydraulic elements are assembled with high grade international brands.
  • A light alignment device makes shearing much easier and more efficient.
  • Pneumatic back support is optional.
CNC Machines Only:
  • CNC system controls ram and back gauge movement.
  • Blade clearance, shearing angle and shearing length are calculated and controlled automatically by CNC system
    Model
    Cutting Thickness
    (mm)
    Cutting Width
    (mm)
    Cutting Angle
    (°)
    Throat Depth
    (mm)
    Number of Stroke
    (min-1)
    Back Gauge Range
    (mm)
    Main Motor Power
    (Kw)
    QC11Y-6×2500
    6
    2500
    0.5~1.5°
    100
    17
    20-600
    7.5
    QC11Y-6×3200
    6
    3200
    0.5~1.5°
    100
    14
    20-600
    7.5
    QC11Y-6×4000
    6
    4000
    0.5~1.5°
    100
    10
    20-600
    7.5
    QC11Y-6*5000
    6
    5000
    0.5~2°
    100
    7
    20-600
    7.5
    QC11Y-6×6000
    6
    6000
    0.5~2°
    100
    6
    20-600
    11
    QC11Y-8×2500
    8
    2500
    0.5~1.5°
    100
    14
    20-600
    11
    QC11Y-8×3200
    8
    3200
    0.5~2°
    100
    10
    20-600
    11
    QC11Y-8×4000
    8
    4000
    0.5~2°
    100
    8
    20-600
    11
    QC11Y-8×6000
    8
    6000
    0.5~2°
    100
    6
    20-600
    11
    QC11Y-10×2500
    10
    2500
    0.5~1.5°
    100
    10
    20-600
    11
    QC11Y-10×3200
    10
    3200
    0.5~2°
    100
    10
    20-600
    11
    QC11Y-10×4000
    10
    4000
    0.5~2°
    100
    12
    20-600
    11
    QC11Y-12×2500
    12
    2500
    0.5~2°
    100
    10
    20-800
    15
    QC11Y-12×3200
    12
    3200
    0.5~2°
    100
    10
    20-800
    22
    QC11Y-12×4000
    12
    4000
    0.5~2°
    100
    7
    20-800
    22
    QC11Y-12×6000
    12
    6000
    0.5~2°
    100
    5
    20-800
    22
    QC11Y-16×2500
    16
    2500
    0.5~2°
    100
    8
    20-800
    22
    QC11Y-16×3200
    16
    3200
    0.5~2°
    100
    7
    20-800
    22
    QC11Y-16×4000
    16
    4000
    0.5~2.5°
    100
    6
    20-800
    22
    QC11Y-20×2500
    20
    2500
    0.5~2.5°
    100
    6
    20-800
    30
    QC11Y-20×3200
    20
    3200
    0.5~3°
    100
    5
    20-800
    30
    QC11Y-20×4000
    20
    4000
    0.5~3°
    100
    5
    20-800
    30
    QC11Y-25×2500
    25
    2500
    0.5~3°
    100
    5
    20-800
    37
    QC11Y-25×3200
    25
    3200
    0.5~3°
    100
    5
    20-800
    37
    QC11Y-30×2500
    30
    2500
    0.5~3°
    100
    4
    20-1000
    45
    QC11Y-30×3200
    30
    3200
    0.5~3°
    100
    4
    20-1000
    45
