You are here: home  > Hydraulic Guillotine Shearing Machine  > guillotine shearing machine QC11Y-25X4000

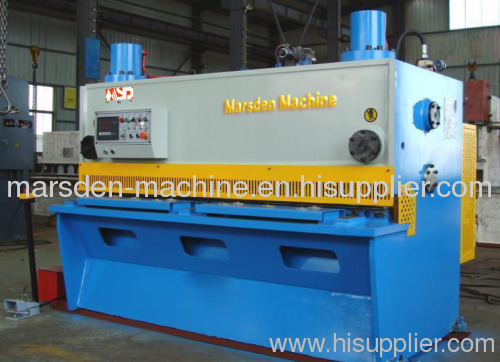

Enlarge guillotine shearing machine QC11Y-25X4000

guillotine shearing machine QC11Y-25X4000

Price: 4860.0~48000.0 USD
Payment Terms: T/T,L/C,
Place of Origin: Jiangsu, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: QC11Y-25X4000
Production Capacity: 30 sets per month
Delivery Date: Within 20-35 days...
Max cutting thickness:: 25mm
Electrical parts:: SIEMENS
Strokes:: 6~12 1/min
Throat Height:: 1100mm
WARRANTY:: 100% one year
Means of Transport: Ocean,
Packing: exporting demanding
Control:: NC
Max cutting width:: 4000mm
Blade material:: 9Crsi
Backgauge Range:: 20-1000mm
Certification:: CE

Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.



guillotine shearing machine QC11Y-25X4000


guillotine shearing machine QC11Y-25X4000

guillotine shearing machine QC11Y-25X4000

guillotine shearing machine QC11Y-25X4000

guillotine shearing machine QC11Y-25X4000

guillotine shearing machine QC11Y-25X4000

guillotine shearing machine QC11Y-25X4000

  • Holistic welding structure treated by annealing.
  • The top rest does the linear motion under the hydraulic cylinder′s drive.
  • Both the upper and lower blades are rectangular,and the blade clearance can be rapidly adjusted manually or electrically.
  • Time relay controls shearing stroke and shearing angles are adjusted electrically.
  • The forward and backward movement of the back gauge is motorized and indicated by a digital display,while fine adjustments are also available.
  • All major electrical and hydraulic elements are assembled with high grade international brands.
  • A light alignment device makes shearing much easier and more efficient.
  • Pneumatic back support is optional.
Model
Cutting Thickness
(mm)
Cutting Width
(mm)
Cutting Angle
(°)
Throat Depth
(mm)
Number of Stroke
(min-1)
Back Gauge Range
(mm)
Main Motor Power
(Kw)
QC11Y-6×2500
6
2500
0.5~1.5°
100
17
20-600
7.5
QC11Y-6×3200
6
3200
0.5~1.5°
100
14
20-600
7.5
QC11Y-6×4000
6
4000
0.5~1.5°
100
10
20-600
7.5
QC11Y-6*5000
6
5000
0.5~2°
100
7
20-600
7.5
QC11Y-6×6000
6
6000
0.5~2°
100
6
20-600
11
QC11Y-8×2500
8
2500
0.5~1.5°
100
14
20-600
11
QC11Y-8×3200
8
3200
0.5~2°
100
10
20-600
11
QC11Y-8×4000
8
4000
0.5~2°
100
8
20-600
11
QC11Y-8×6000
8
6000
0.5~2°
100
6
20-600
11
QC11Y-10×2500
10
2500
0.5~1.5°
100
10
20-600
11
QC11Y-10×3200
10
3200
0.5~2°
100
10
20-600
11
QC11Y-10×4000
10
4000
0.5~2°
100
12
20-600
11
QC11Y-12×2500
12
2500
0.5~2°
100
10
20-800
15
QC11Y-12×3200
12
3200
0.5~2°
100
10
20-800
22
QC11Y-12×4000
12
4000
0.5~2°
100
7
20-800
22
QC11Y-12×6000
12
6000
0.5~2°
100
5
20-800
22
QC11Y-16×2500
16
2500
0.5~2°
100
8
20-800
22
QC11Y-16×3200
16
3200
0.5~2°
100
7
20-800
22
QC11Y-16×4000
16
4000
0.5~2.5°
100
6
20-800
22
QC11Y-20×2500
20
2500
0.5~2.5°
100
6
20-800
30
QC11Y-20×3200
20
3200
0.5~3°
100
5
20-800
30
QC11Y-20×4000
20
4000
0.5~3°
100
5
20-800
30
QC11Y-25×2500
25
2500
0.5~3°
100
5
20-800
37
QC11Y-25×3200
25
3200
0.5~3°
100
5
20-800
37
QC11Y-30×2500
30
2500
0.5~3°
100
4
20-1000
45
QC11Y-30×3200
30
3200
0.5~3°
100
4
20-1000
45
